The Comfort Heat under carpet heating mats are ideal for small to large areas with carpet flooring, as the thin foil mats are undetectable underfoot. A popular option for bedrooms, as under-carpet heating is very safe, takes up no space and warms quickly in around 15-30 mins.

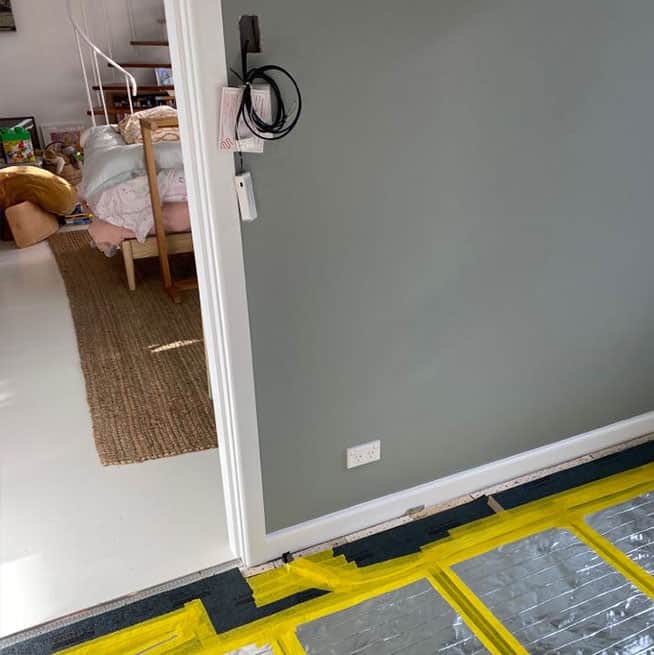

The under-carpet foil mats are taped directly onto the carpet underlay with carpet laid over the top.

The Comfort Heat foil mat system is designed to evenly distribute heat under the carpet, creating a blanket of radiant heat from the ground up.

Carpet underfloor heating for
small to large areas


The under carpet foil mat is taped down on top of the underlay before the carpet is installed. Unlike under tile or in slab heating cables, under carpet foil mats are not installed within a concrete bed and can be laid up to 300mm off walls, fixtures, and furniture within a floor area.


The Comfort Heat under carpet foil mats consists of a twin conducting heating element sandwiched between two layers of reinforced aluminum foil, providing an even distribution of heat.

The under carpet foil mat has a heat output of 140W/m². Available in 500mm wide, factory terminated lengths ranging from 2mts up to 24mts.


Comfort Heat provides technical diagrams, electrical loads, and helpful tele-support for a seamless installation. You will need to coordinate with a licenced electrician and carpet installer to ensure all trades have the specifications they require.


You require a licenced electrician to provide power, install conduits and connect the thermostat to complete your system. All floor heating electrical requirements are supplied for your electrician. [Accordance with standards AS/NZ3000:2000].


  • Installation coordinated with carpet layers
  • Fast responsive heat
  • 1mm thin foil mat

carpet electric underfloor heating


Construction: Multi-stranded heating wire with double insulation, earth screen and sheath
Insulation: 4000 V
Rated Voltage: 230 Volt AC; Rated output 140W/m²
Cold Tail Length: 3 metres with splice connection
Cable Diameter: 1.2mm
Cable Standard: IEC800 Class II
Warranty: 5 years
